| 起源の場所: | 中国の山東省 |
|---|---|
| ブランド名: | SH |
| 証明: | ISO9001,CE |
| モデル番号: | SLDJ-1300-3など |
| 書類: | wood pallet nailing machine...ne.pdf |
| 最小注文数量: | 1セットWood Pallet Pallet Pier自動接続釘付けマシン |
| 価格: | US $7,800 - 12,400 / Set |
| パッケージの詳細: | エクスポートパッキングまたはフィルムラップコンテナの負荷 |
| 受渡し時間: | 20日以内 |
| 支払条件: | T/T、ウェスタンユニオン |
| 供給の能力: | 1000セット/年の木製パレット桟橋自動接続釘付け機 |
| 名前: | ユーロパレットブロック釘打機 | 容量: | 600p/h |
|---|---|---|---|
| 電力(ワット): | 1.5kwサーボモーター | ブロック幅: | 60-150mm |
| ボードの長さ: | 600-1300mmまたは顧客のニーズとして | ネイルガン: | Stanley Bostitch Stitch Gun70mm*3 |
| 釘付け方法: | 1つの爪、2ネール、3ネール、4ネール、5ネール | 保証: | 機械を受け取ってから12か月後 |
| 必要な労働力: | 1オペレーター | アフターサービスの提供: | 試運転とトレーニング、ビデオ技術サポート |

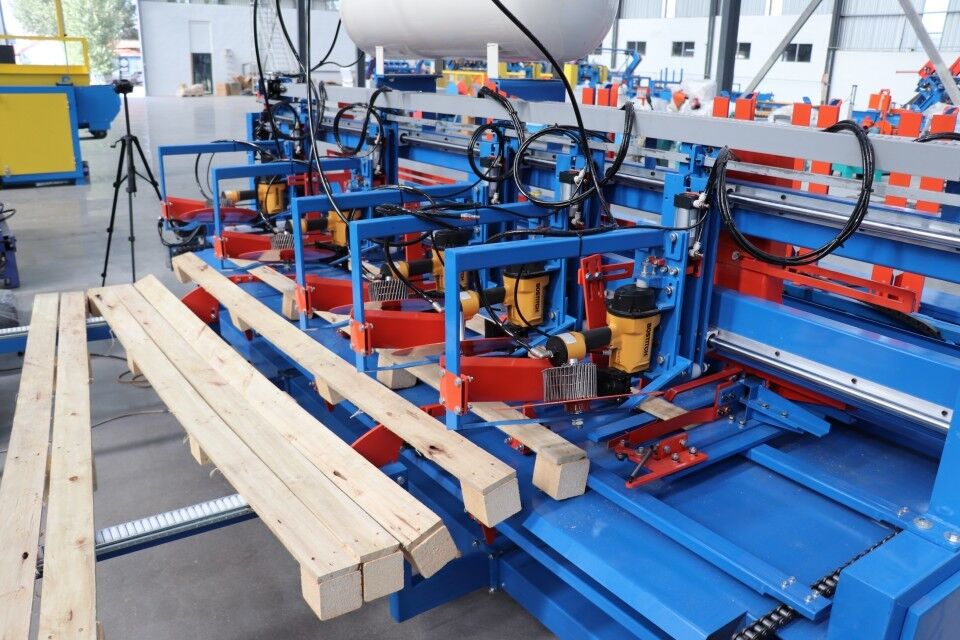

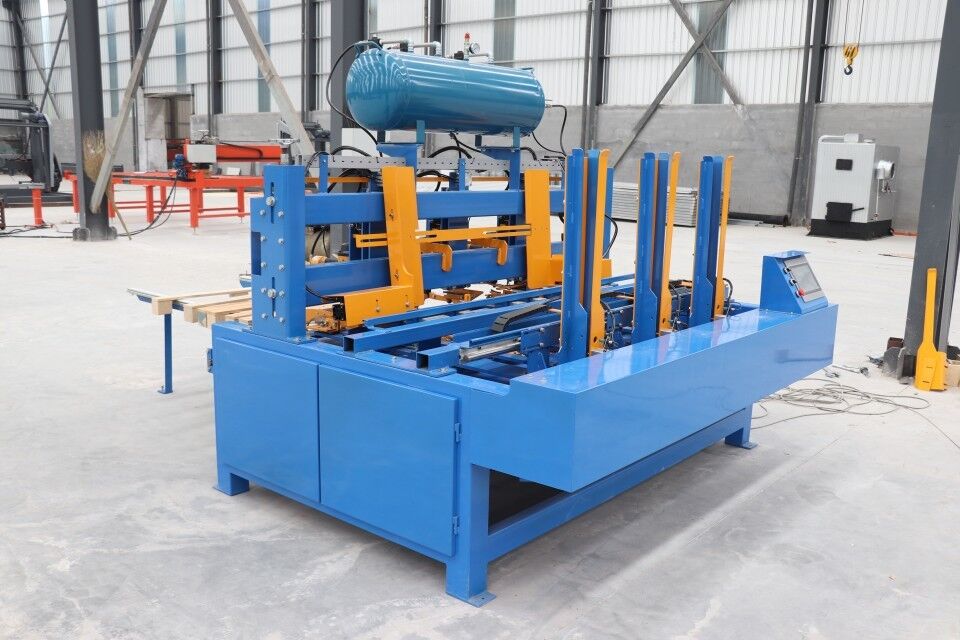

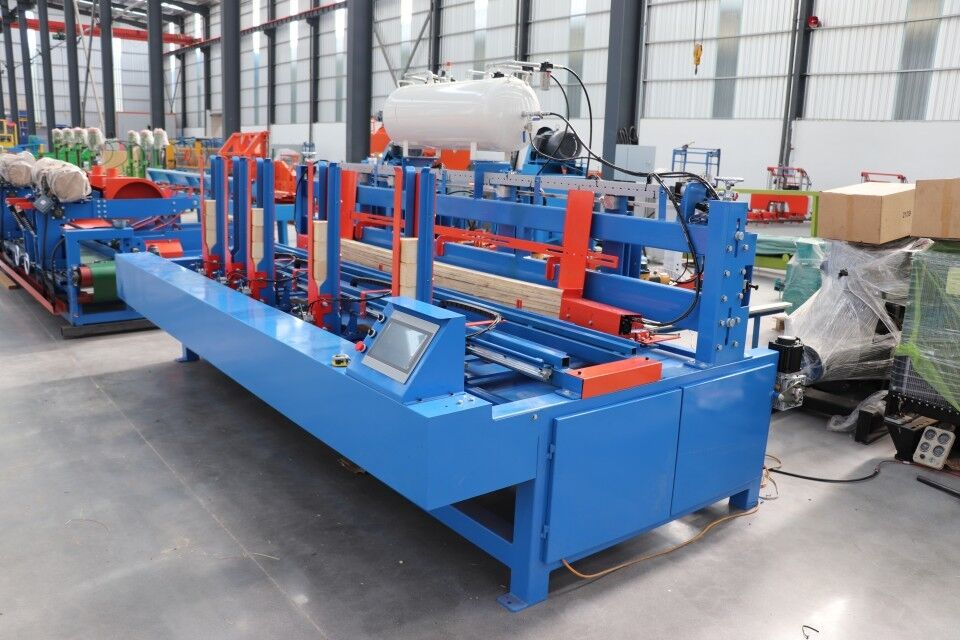

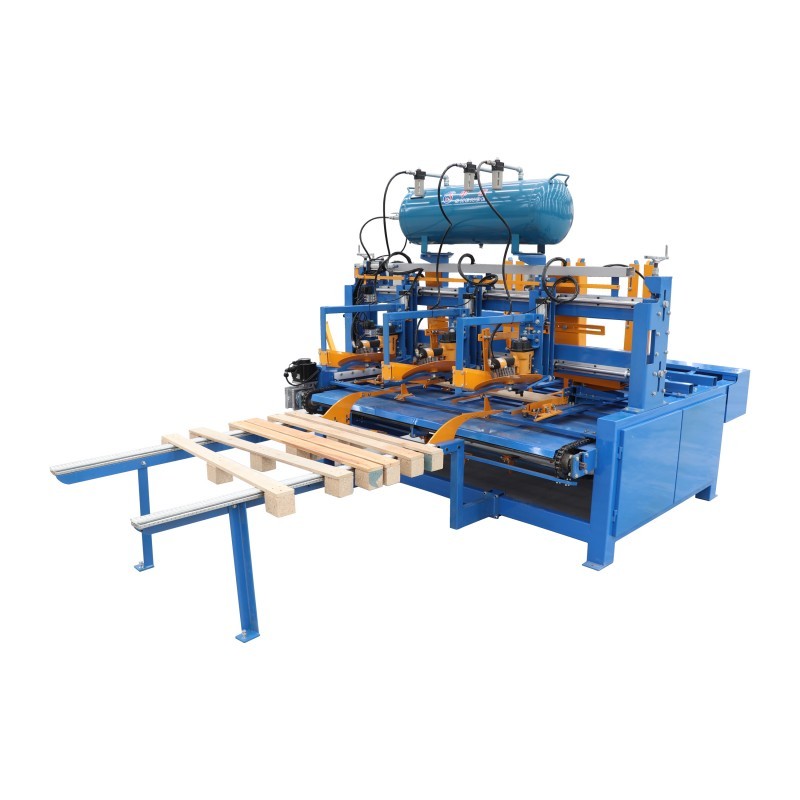

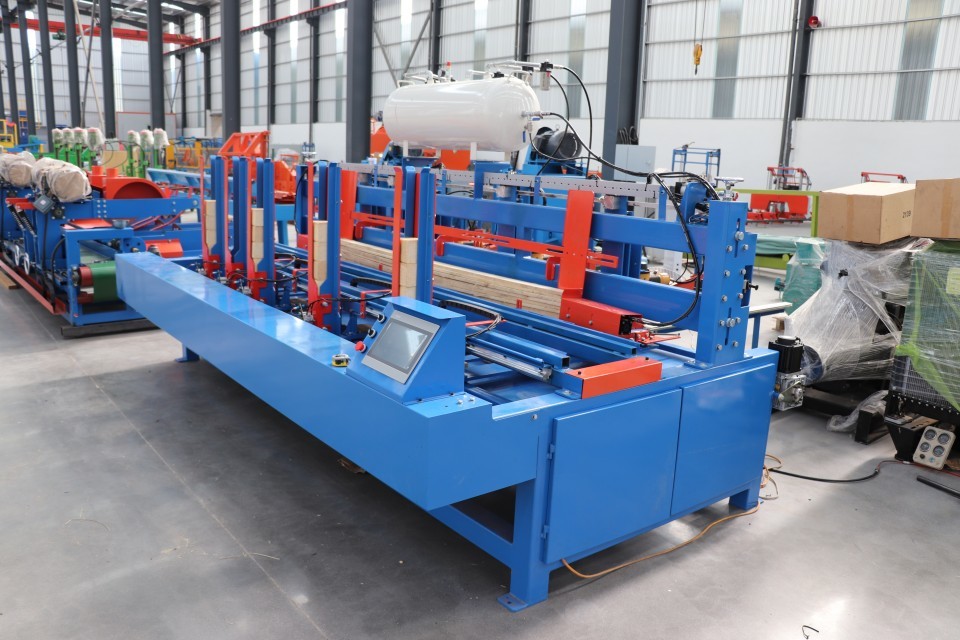

Automatic Euro Pallet Block Nailing Machine
– High-Efficiency Automated Pallet Production
Our Automatic Euro Pallet Block Nailing Machine is a heavy-duty, high-performance industrial solution designed for the automated assembly of Euro pallet blocks and stringers. It streamlines the traditional, labor-intensive nailing process, ensuring maximum safety, uniform quality, and high-speed output.
Advanced PLC Control System: User-friendly touch screen interface allows for quick adjustment of nail spacing, block dimensions, and production speed.
High Compatibility: Perfectly handles standard Euro pallet blocks (145mm x 145mm, 145mm x 100mm, etc.) with precise positioning.
Pneumatic / Hydraulic Nailing System: Delivers strong, consistent driving force, ensuring nails are perfectly flush or countersunk according to your requirements.
Automatic Pallet Nailing Machine & Stacking (Optional): Can be customized with automatic pallet nailing machine and pallet stackers to minimize manual handling.
Durable & Robust Design: Built with high-grade industrial steel to withstand continuous, high-intensity factory environments.
| Model | SLDJ-1300-3 |
| Block width | 60-150mm |
| Board Length | 600-1300mm |
| Nail gun | Stanley BOSTITCH Stitch gun70mm*3 |
| Air pressure | 0.8MPA |
| Nail gun speed | 4-8 s/time |
| Motor power | 1.1KW Servomotor |
| Capacity | 600P/H |
| Voltage | 220V(Customized) |
| Operating mode | Touch screen |
| Production mode | Manual discharge/automatic pin pier |
| Machine size | 2500*1800*2100mm |
Ideal for Euro pallet manufacturing, block pallet production, and custom pallet assembly.
Suitable for large-scale industrial operations requiring high-speed, repeatable nailing precision.
Reduces production time and costs while maintaining consistent, high-quality output.
Related Hot Selling Machines
| Model | PB200 |
| Working mode | Automatic feeding ,automatic nailing and cutting |
| Operating mode | Touch screen control |
| Operational mode | Pneumatic operation |
| Motor power | 7.5KW,2.2KW*2,1KW |
| Raw material length | 1000-3000mm |
| Block Length | 40-200mm |
| Cutting height | 40-120mm |
| Cutting width | 40-100mm |
| Cutting blade | 350-400mm |
| Number of planer | 2 |
| Nail quantity | 1-3 pcs (adjustable) |
| Working Efficiency | 5-6m3/day |
| Voltage | 380V/3 Phase |
| Weight | 1200Kg |
| Dimension | 5400*1400*1600mm |
Wood block multi-blade saw
| Model | BM-1250 |
| Cutting Length | 1250mm |
| Cutting Thickness | 100mm |
| Cutting Width | 200mm |
| Saw Diameter | 355mm |
| Motor | 30kw |
| Weight | 1600kg |
