| 起源の場所: | 中国の山東省 |
|---|---|
| ブランド名: | SH |
| 証明: | ISO9001, CE |
| モデル番号: | YM500、YM430、YM400、YM330、YM150など |
| 書類: | multi blades rip saw.pdf |
| 最小注文数量: | 1セット |
| 価格: | $15,800 - $180,000 / Sets |
| パッケージの詳細: | コンテナの読み込み |
| 受渡し時間: | 20日から30日以内に |
| 支払条件: | T/T、ウェスタンユニオン |
| 供給の能力: | 1000セット/年 |
| 名前: | 高効率丸太マルチリップソー生産ライン | 切断容量: | 120m3/8時間の容量 |
|---|---|---|---|
| キーワード: | 丸太多刃鋸、工業用製材ライン、マルチリップソー機 | 最高丸太を処理する。直径: | 500mm |
| 手術: | 自動 | 切断刀の直径: | 255～650mm |
| 供給速度: | 10～50m/分 | 適用木: | 堅材の丸太および軟木 |
| アフターサービス: | ビデオ技術サポート | 保証: | 1年 |

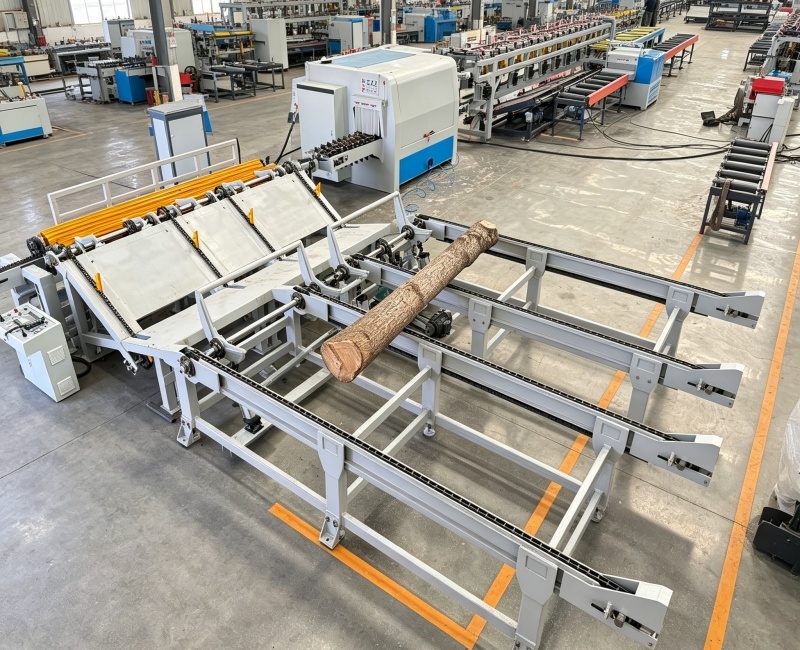

Maximize your sawmill’s ROI with our heavy-duty log multi-blade saw production line. Engineered specifically for large-scale timber processing, this system handles logs with diameters ranging from 250mm to 500mm and lengths up to 6000mm.
With a robust industrial design, this line delivers a massive production capacity of 80–120 m³ per 8-hour shift, making it the ideal solution for high-volume lumber manufacturers seeking to reduce labor costs and increase precision.
| Feature | Capability |
| Log Diameter Range | 250mm – 500mm |
| Maximum Log Length | 6000mm |
| Daily Output (8 Hours) | 80m³ – 120m³ |
| Blade Configuration | Multi-saw blade system for precision cutting |
| Application | Softwood & Hardwood processing, Pallet production, Construction timber |

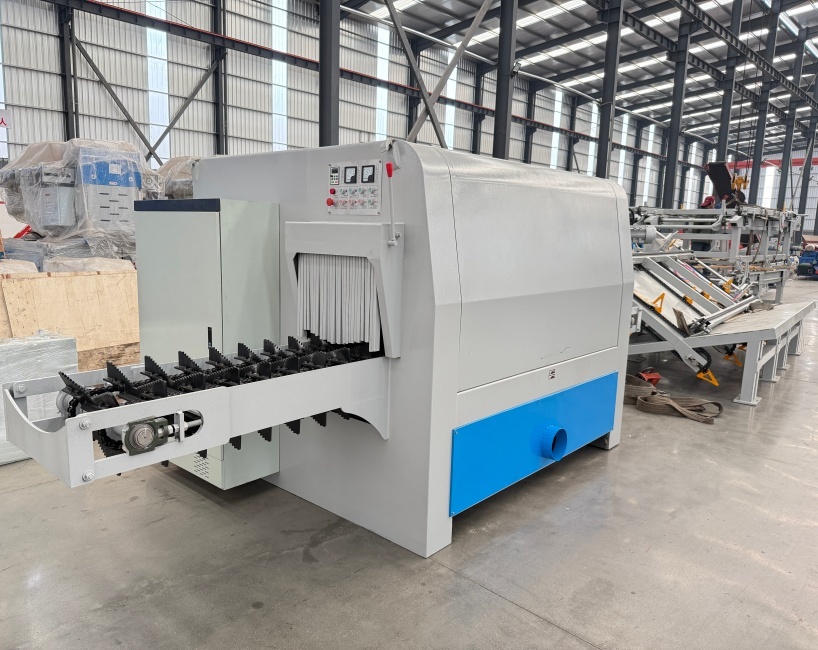

| Model | SHYM500 |
| Sawing Log Diameter | 250-500mm |
| Min Sawing Log Length | 1000mm |
| Spindle speed | 2800r/min |
| Main Motor Power | 75kw,75kw |
| Feeding Motor | 3kw |
| Saw Blade Quantity | 2-10pcs |
| Saw Blade Diameter | 650mm |
| Discharge Electric-powered Side Pressure Roller | 2pcs |
| Model | SH160-400 |
| Max Cutting Plank Width | 400mm |
| Max Cutting Plank Thickness | 70-160mm |
| Saw Blade Diameter | 280mm |
| Saw Spindle Diameter | 70mm |
| Circular Saw Blade Quantity | 1-10 Pieces |
| Motor Power | 37+45KW |
| Weight | 2690KG |
Woodworking Machinery for Large Logs
Automatic Log Sawing Production Line
Log Multi-Rip Saw Price
High Yield Wood Sawing System
Industrial Log Breakdown Line
Timber Primary Processing Equipment
Q1: What is the maximum log size this machine can handle?
A: It processes logs up to 500mm in diameter and 6000mm in length.
Q2: What is the maximum log diameter and length this production line can process?
A: This heavy-duty production line is specifically designed for large-scale timber. It efficiently processes logs with a diameter max. 500mm and a maximum length of up to 6000mm or as customer needs, making it ideal for construction-grade lumber and large pallet materials.
Q3: Can this multi-saw blade line handle both hardwood and softwood?
A: Yes. The system is equipped with high-torque motors and specialized alloy saw blades that can be adjusted for different wood densities. Whether you are processing softwood (pine, spruce) or dense hardwood, the machine ensures a smooth finish and high dimensional accuracy.
A: Due to its industrial capacity, the line typically requires a 380V/50Hz (or customized) three-phase power supply. Regarding space, since it handles 6000mm logs, we recommend a factory layout that allows for seamless in-feed and out-feed. Contact our technical team for a detailed floor plan layout.
