| 起源の場所: | 中国の山東省 |
|---|---|
| ブランド名: | SH |
| 証明: | ISO9001 |
| モデル番号: | ZDP600 |
| 最小注文数量: | 1セット |
| 価格: | $15,800 - $18,000 / Sets |
| パッケージの詳細: | コンテナの読み込み |
| 受渡し時間: | 20日以内 |
| 支払条件: | T/T、ウェスタンユニオン |
| 供給の能力: | 1000セット/年 |
| 名前: | ダブルアーバーヘビーデューティーマルチリップソー | 丸鋸の直径: | 455mm |
|---|---|---|---|
| 最高。鋸で挽く厚さ: | 300mm | 最大。送り幅: | 600mm |
| ボトムアーバーのモーター出力: | 75KW | トップアーバーのモーター出力: | 55KW |
| 給紙ローラー数: | 上3枚、下6枚 | 重さ: | 4300kg |
| キーワード: | 頑丈なリップソー、マルチブレードソーイングマシン |

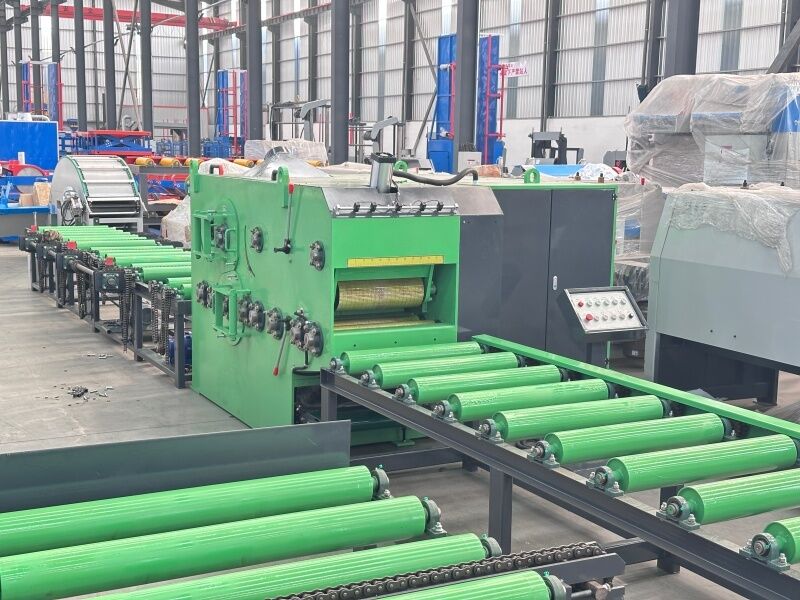

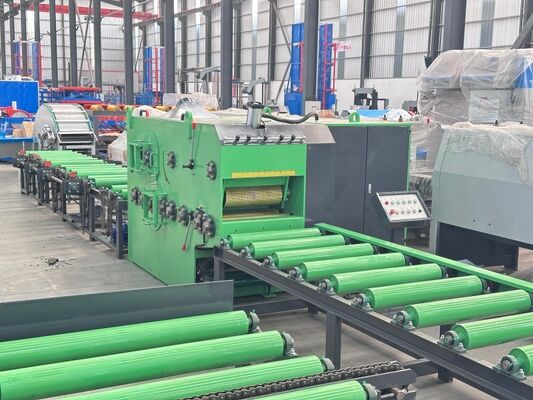

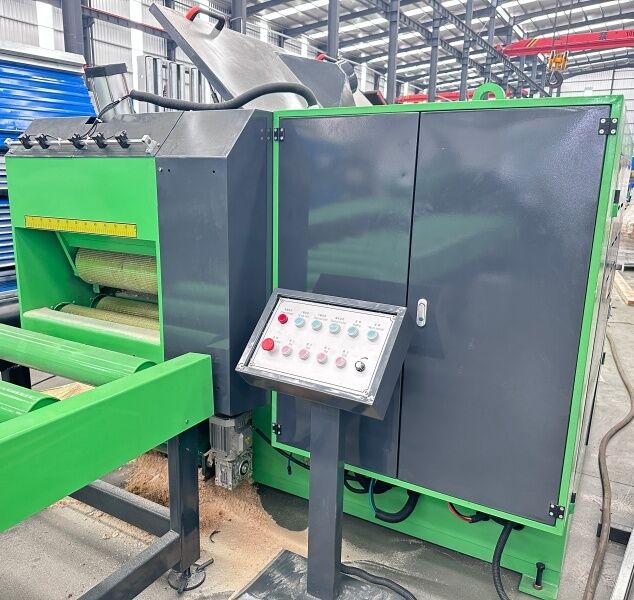

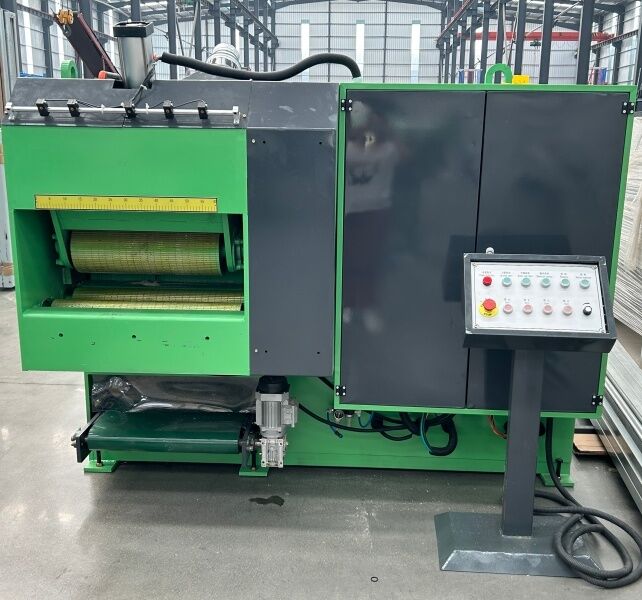

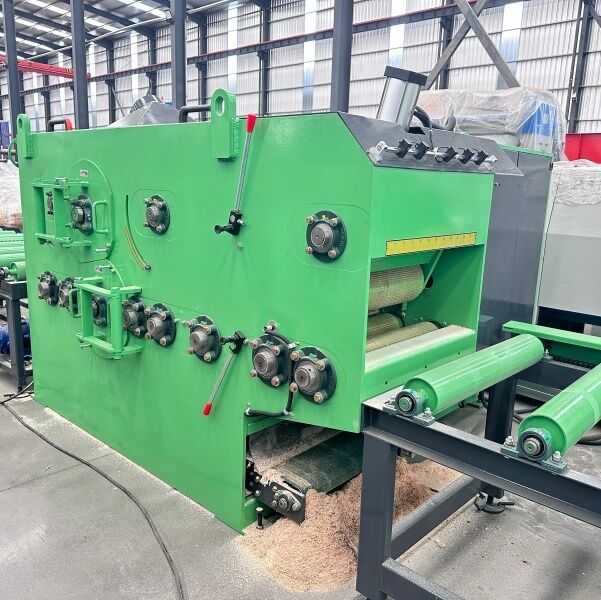

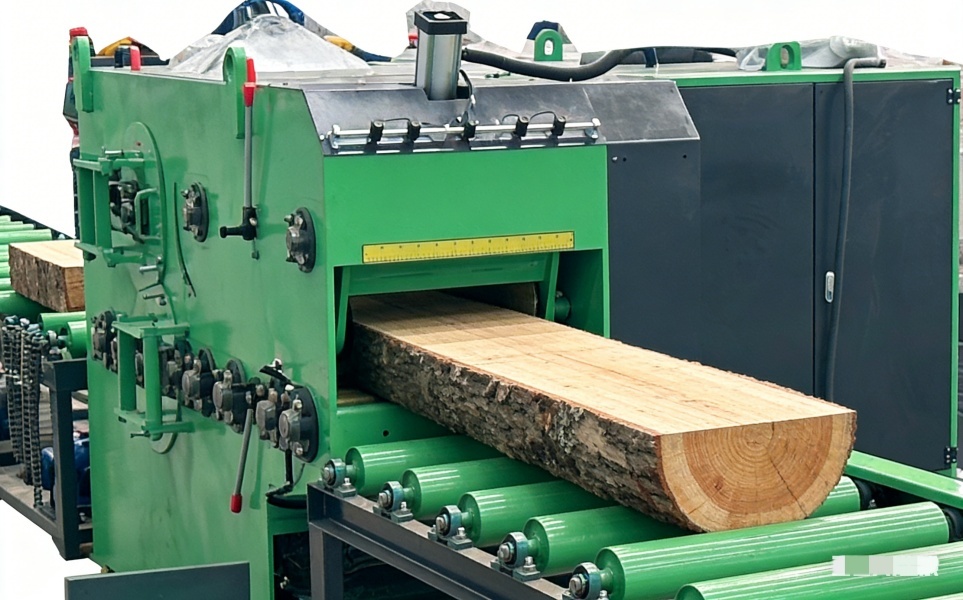

Our Double Arbor Heavy Duty Multi-Rip Saw is engineered for high-volume timber production where power and precision are paramount. Designed to handle large logs and thick slabs, this machine features a robust dual-arbor configuration (75KW bottom / 55KW top) to ensure clean, straight cuts through even the hardest timber. With a massive 300mm sawing thickness and a flexible frequency-adjustable feeding system, it is the ultimate workhorse for modern sawmills looking to maximize wood recovery and minimize labor costs.
| Model | ZDP600 |
| Max. infeed width | 600mm |
| Sawing height /thickness | 100-300mm |
| Main motor power, bottom arbor | 75KW |
| Main motor power, top arbor | 55KW |
| Diameter of circular saws | 455mm |
| Carbide circular blade up/down | 3sets (6pcs) with the machine |
| Feeding speed | Frequency speed adjustable |
| Number of feeding rollers | 3 pcs top ; 6pcs bottom |
| Weight | 4300kgs |
| Voltage | 380V / 50Hz / 3 phase |
Powerful Dual-Arbor Design: Equipped with a 75KW bottom motor and a 55KW top motor, providing the high torque needed for heavy-duty industrial cutting.
Massive Cutting Capacity: Handles an impressive sawing height of 100mm to 300mm, making it suitable for thick timber and large-scale wood processing.
Superior Feeding Stability: Features a precision system with 3 top and 6 bottom feeding rollers, ensuring smooth and consistent movement of heavy workpieces.
Precision Carbide Blades: Includes 3 sets (6 pieces) of 455mm high-grade carbide circular blades for long-lasting sharpness and reduced kerf waste.
Frequency Controlled Feed: Adjustable feeding speeds allow you to optimize throughput based on wood density and thickness.
Heavy-Duty Construction: At 4,300kg, the machine’s massive frame absorbs vibrations, guaranteeing stability and accuracy during continuous high-speed operation.
|
|
|
 |
|
