| 起源の場所: | 中国の山東省 |
|---|---|
| ブランド名: | SH |
| 証明: | ISO9001 |
| モデル番号: | CH-3、CH-7.5、BD-7.5、JL-6000、MC-64など |
| 最小注文数量: | 1セット |
| 価格: | US$255 -US$2900 Per Set Machine |
| パッケージの詳細: | 羅梱包または輸出パレット梱包 |
| 受渡し時間: | 5～15営業日 |
| 支払条件: | T/T、ウェスタンユニオン |
| 供給の能力: | 10000セット/年 |
| 名前: | 木材おがくず収集機 | タイプ: | おがくず除去ファン、オーガー、パルスコレクター |
|---|---|---|---|
| 力: | 2.2kw～7.5kw | 使用法: | 産業用集塵機システム |
| アフターサービス: | ビデオ技術サポート |
Wood Sawdust Collection Machine Industrial Dust Extractor System for Workshop / Factory (Cyclone & Bag Filter & Auger)
Product Overview
Our wood sawdust collection system is specifically designed for woodworking workshops, furniture factories, and processing plants. It efficiently removes sawdust, wood chips, and fine dust particles from the air, ensuring a clean and safe working environment. The system includes a centrifugal fan, bag filter, screw conveyor, and optional pulse jet cleaning.
Key Features
High Efficiency: Captures fine sawdust and large wood chips simultaneously.
Durable Construction: Made of heavy-duty steel for long-term industrial use.
Energy Saving: Optimized fan and motor design reduces power consumption.
Flexible Configuration: Available in 3kW and 7.5kW models to suit different workshop sizes.
Automatic Discharge: Optional screw conveyor (Auger) automatically removes collected dust.
Applications
Woodworking workshops
Furniture manufacturing
MDF/ Particleboard cutting lines
Sanding and planing machines

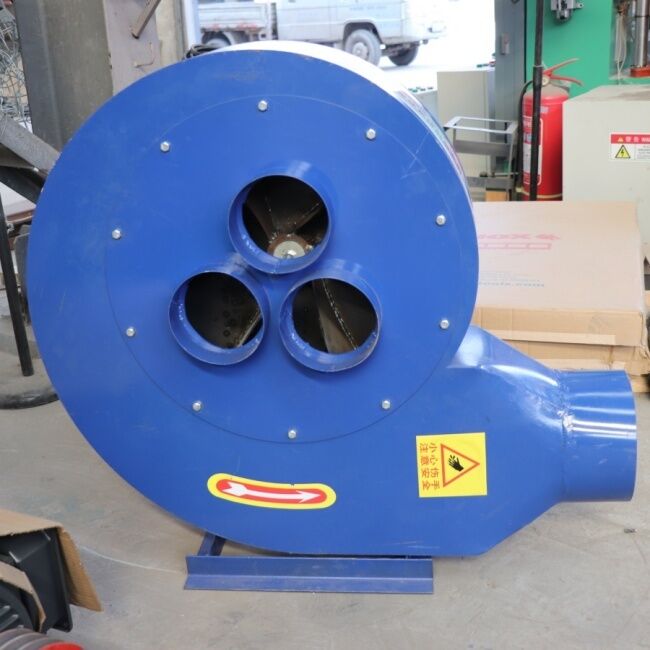

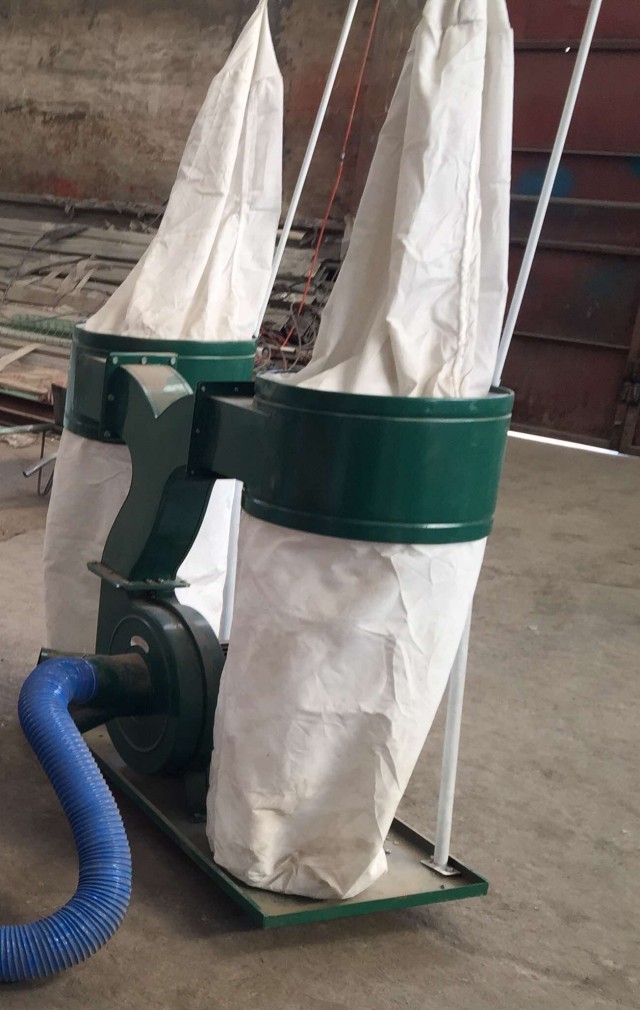

| Item | CH-3 / BD-3 | CH-7.5 / BD-7.5 |
|---|---|---|
| Power | 3 kW | 7.5 kW |
| Voltage | 380V / 3Phase (customizable) | 380V / 3Phase (customizable) |
| Airflow | Approx. 2000-3000 m³/h | Approx. 4500-6000 m³/h |
| Inlet Diameter | 100mm / 150mm | 150mm / 200mm |

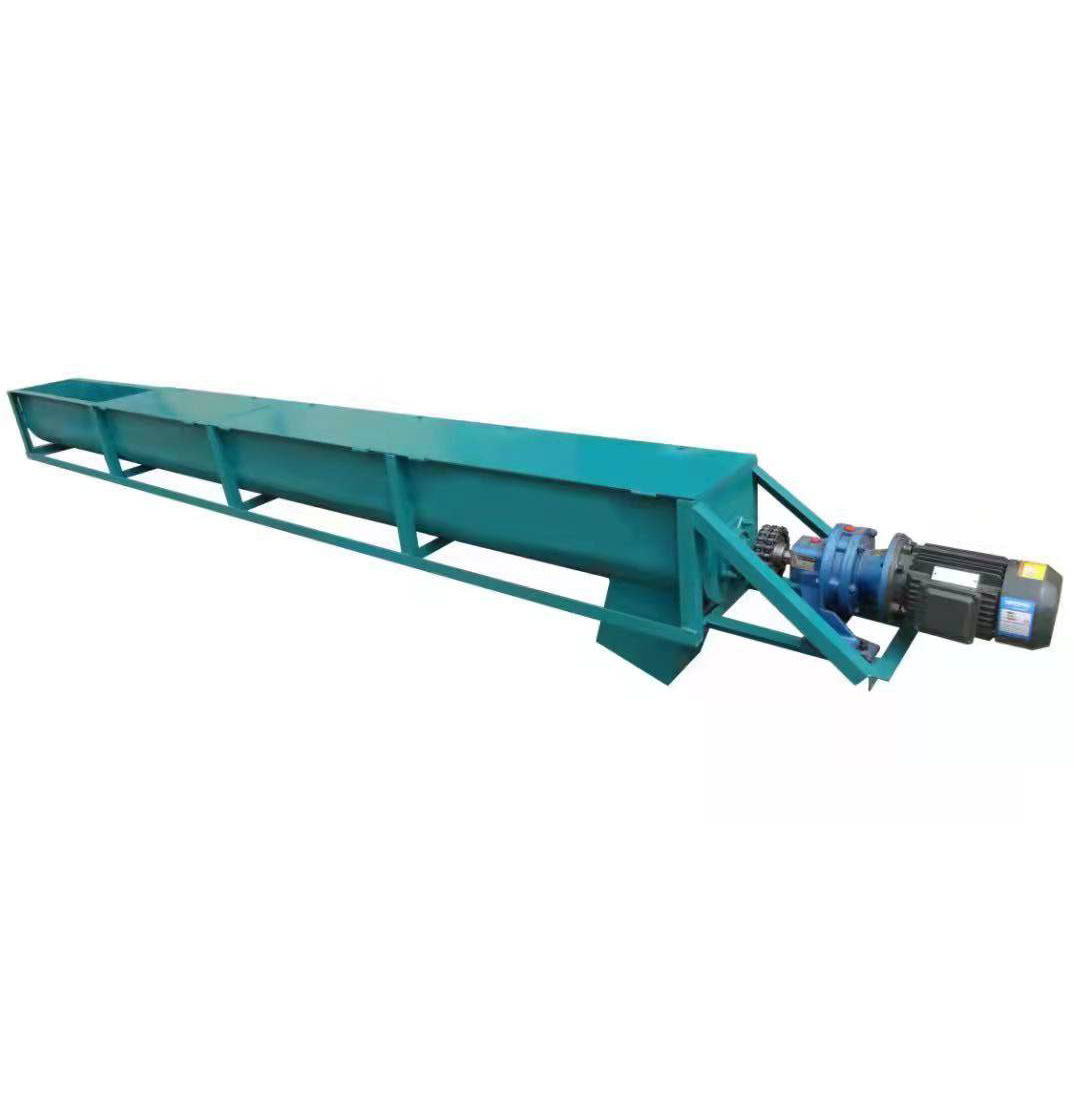

| Model | Length | Power | Tube Diameter |
|---|---|---|---|
| JL-4000 | 4000 mm | 2.2 kW | 219mm / 273mm |
| JL-6000 | 6000 mm | 2.2 kW | 219mm / 273mm |

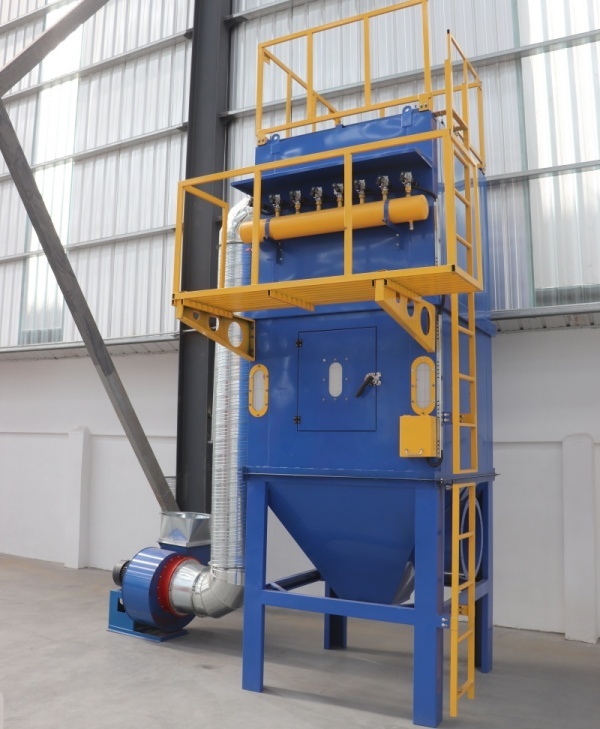

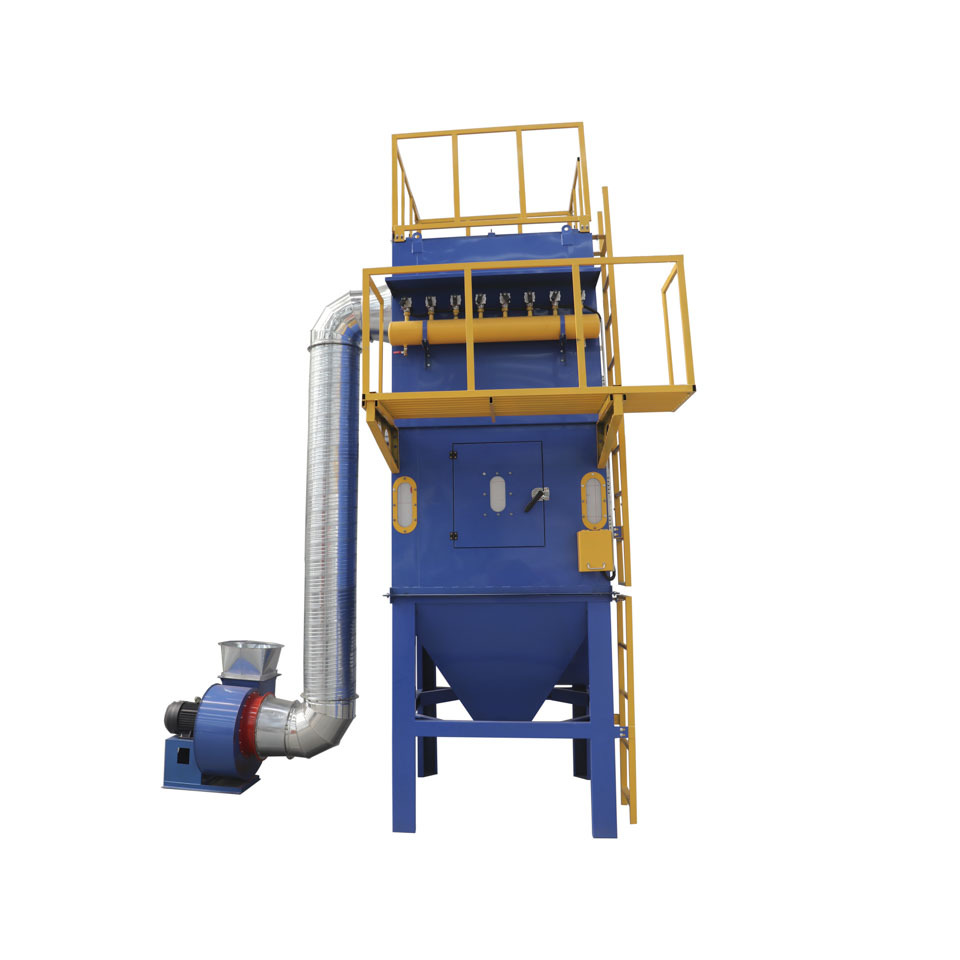

| Model | Filter Bags | Power | Cleaning Method |
|---|---|---|---|
| MC-48 | 48 bags | 5.5 kW | Automatic pulse jet |
| MC-64 | 64 bags | 7.5 kW | Automatic pulse jet |
