| 起源の場所: | 中国の山東省 |
|---|---|
| ブランド名: | SH |
| 証明: | ISO9001 |
| モデル番号: | PT-1600、PT-3300、AWPN-1300、等 |
| 最小注文数量: | 機械を釘付けする1つのセット パレット |
| 価格: | US $4,200 - 21,500 / Set |
| パッケージの詳細: | 機械を釘付けするパレットの容器のローディング |
| 受渡し時間: | 20日以内 |
| 支払条件: | T/T、ウェスタンユニオン |
| 供給の能力: | 機械を釘付けするパレットの1000sets/year |
| 名前: | テーブルを釘付けする空気パレット | パレット幅: | 800-1600のmm |
|---|---|---|---|
| パレットの長さ: | 600-1300mm | 容量: | 240～400パレット/8時間 |
| 動作圧力: | 0.8mpa | コイルネイル銃の数: | 2P （CN70、CN55） |
| 重さ: | 体重650kg | 縦桁のQty: | 2つ、3つ、4つ、か5つの縦桁 |
| 圧縮式クランプ: | 簡単にブロックを中心に | 空気圧リフト: | パレットをオペレータ持ち上げを最小にするために上げる |
| 提供されるアフターセールスサービス: | オンライン サポート、依託し、訓練する自由な予備品 | ||
| ハイライト: | semi-automatic wood pallet machine,pneumatic pallet nailer machine,wood sawdust block pallet maker |
||
Maximize your output and minimize labor costs with our Semi-automatic European Pallet Pneumatic Nailing Table. This isn't just a machine; it's a productivity partner engineered to empower a single operator to build an impressive 240 to 400 pallets within an 8-hour shift. By automating the heaviest and most repetitive tasks, we deliver unparalleled efficiency, dramatic ergonomic improvements, and a rapid return on investment.

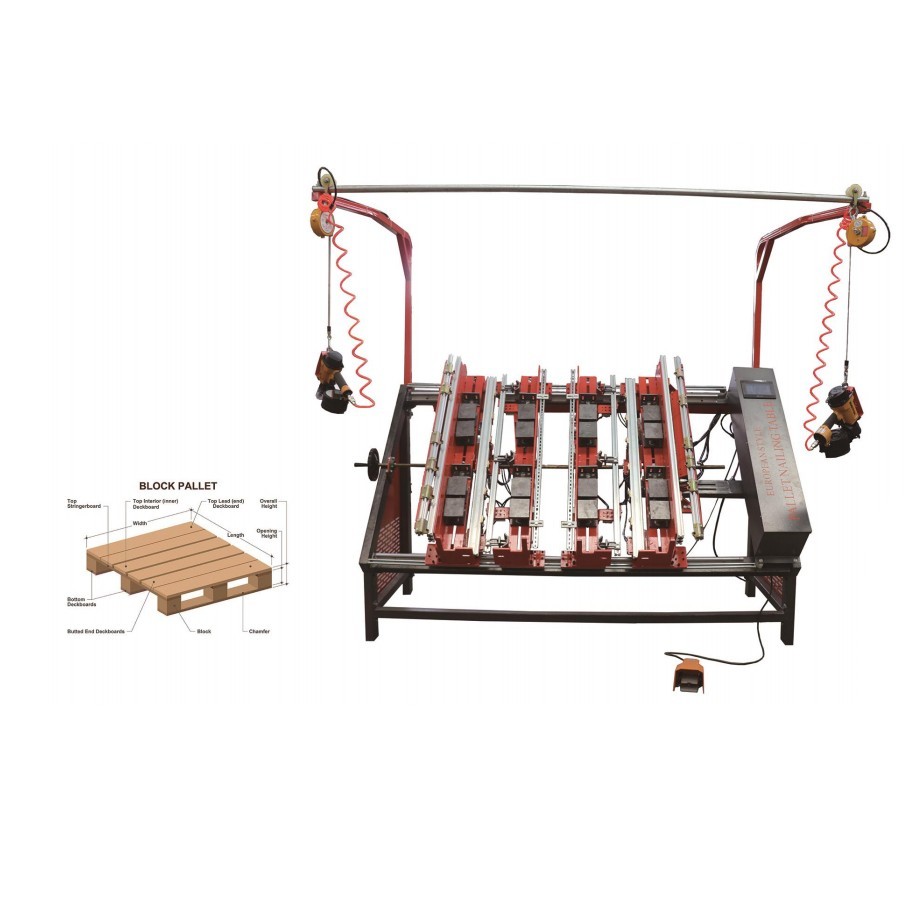

A universal pneumatic nailing table, Semi-automatic European Pallet Pneumatic Nailing Table features an adjustable working top, pneumatic clamping of support elements (blocks or stringers), and pneumatic lift of the pallet towards the operator.
Instruction:
| Model | PT-1600 | PT-3300 |
| Wood pallet length | 600-1300mm | 700-1500mm |
| Wood pallet width | 800-1600mm | 900-3300mm |
| Operational mode | Pneumatic operation | Pneumatic operation |
| Air pressure | 0.8MPA | 0.8MPA |
| Production efficiency | 30-40pcs /h | 30-40pcs /h |
| Number of beams | 3p (customized) | 5p (customized) |
| Number of nail guns |
2P (CN70,CN55) American Stanley staple gun |
2P (CN70,CN55) American Stanley staple gun |
| Weight | 650kg | 950kg |
| Size | 2400*980*1900mm | 4000*980*1900mm |
Semi-Automatic Wood Pallet Nailing Machine/Euro Block Pallet Production Line
features an adjustable working top, pneumatic clamping of support elements (blocks or stringers), and pneumatic lift of the pallet towards the operator.
Technical specifications:
| AEPN-1400-1 Semi-automatic European pallet nailing machine | |
| Wood pallet length | 700-1300mm |
| Wood pallet width | 700-1600mm |
| Nailing mode | manual |
| Working mode | PLC touching screen |
| Pallet returning mode | Electrical |
| Air pressure | 0.8MPA |
| Number of beams | 3p (or customized) |
| Number of nail guns | 2P (CN70,CN55) American Stanley staple gun |
| Main motor power | 5kw |
| Wood Pallet Turning Machine | |
| Turning speed | 4-8s/time |
| Wood Pallet Automatic Palletizer | |
| Palletizing capacity | 20pcs pallets |

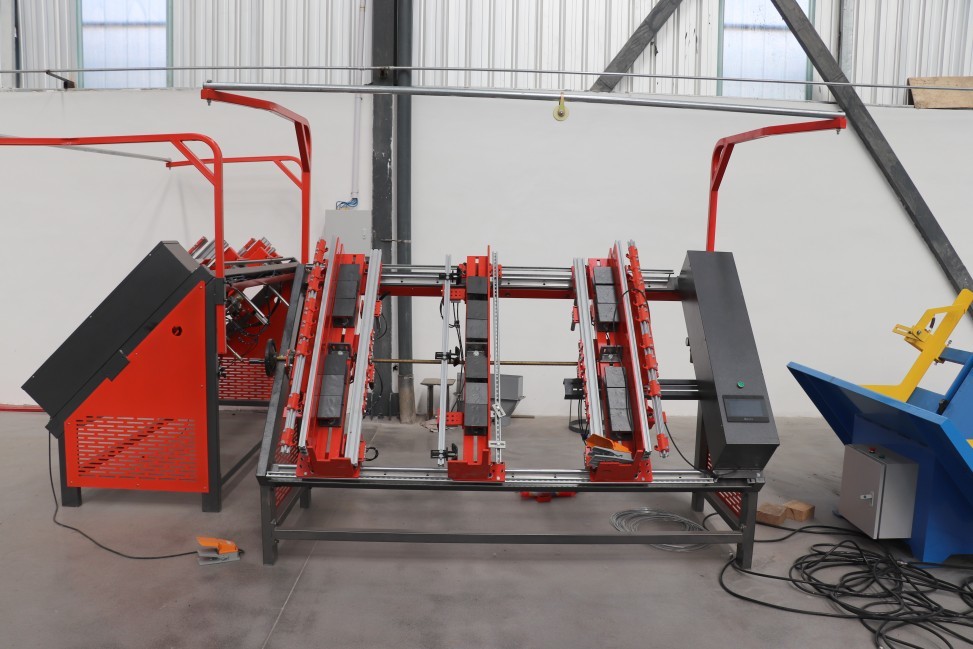

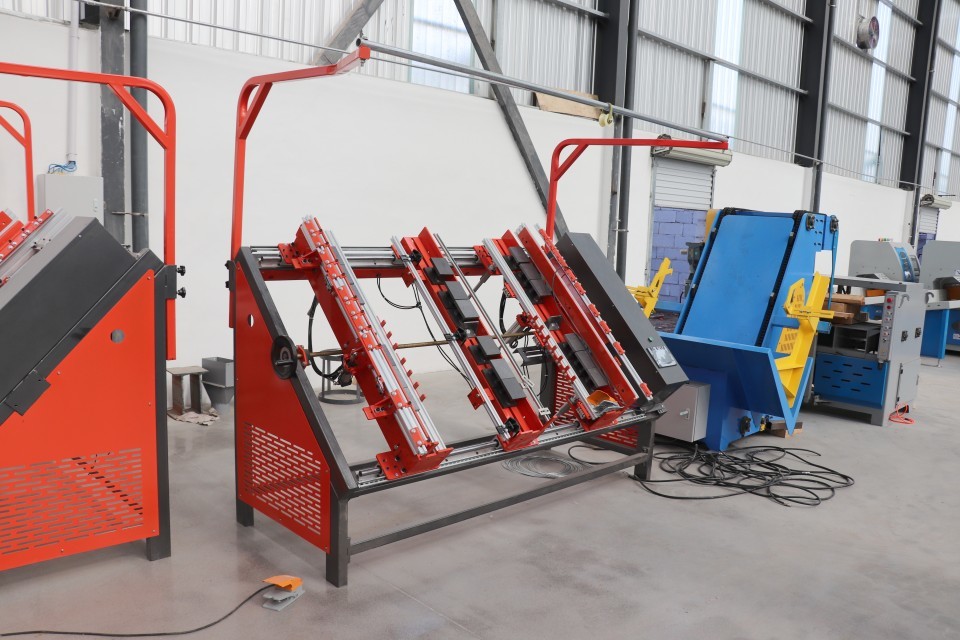

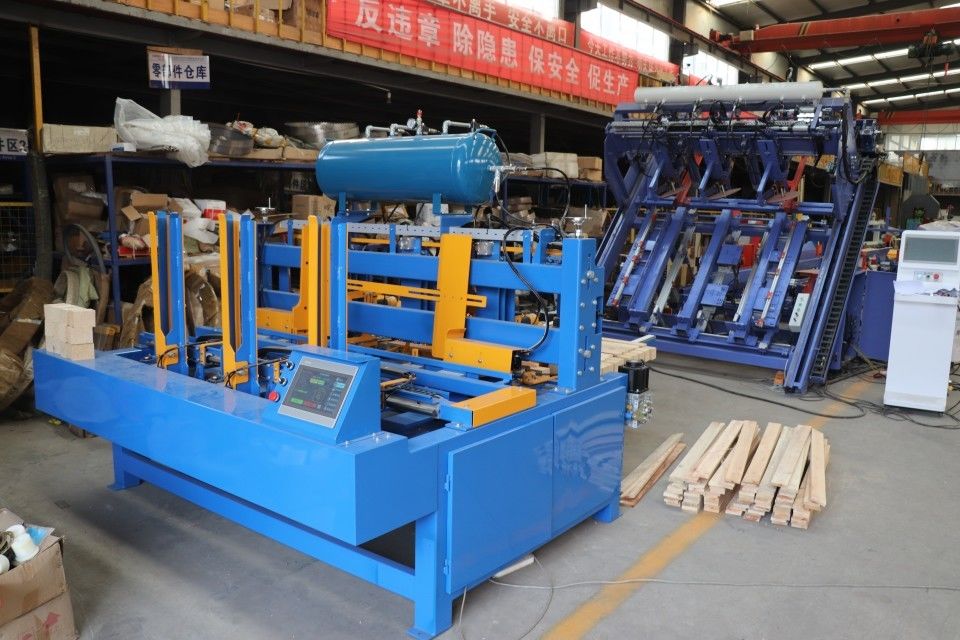

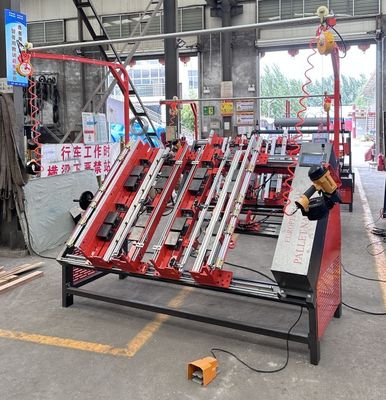

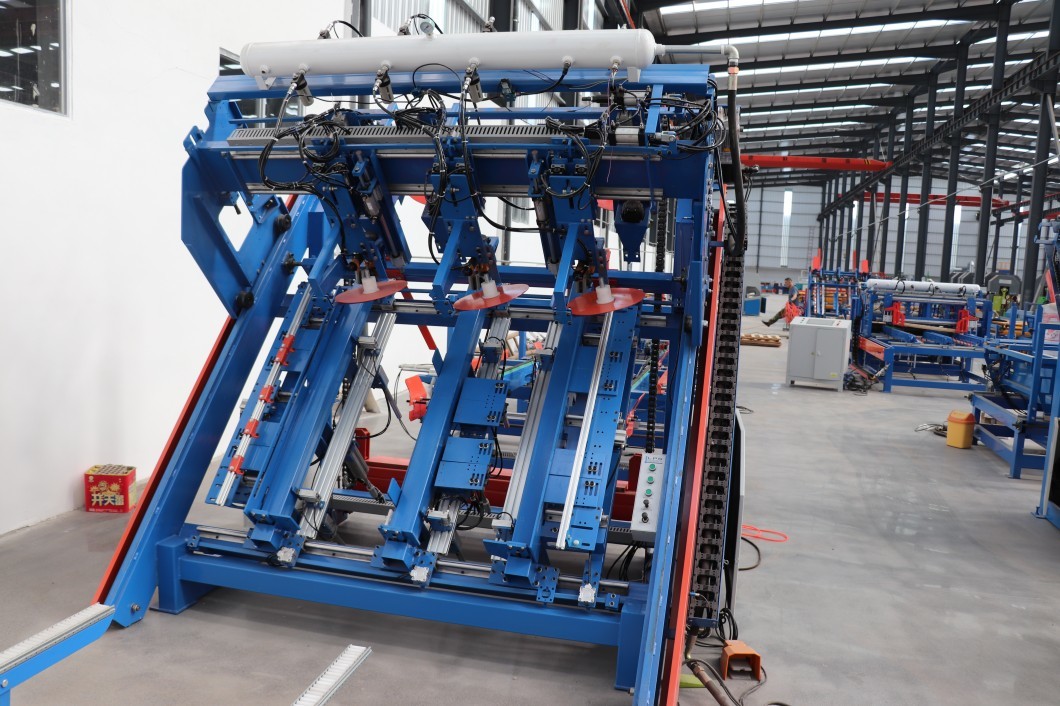

Detailed Images
Built for Reliability, Backed by Trustworthy Support
We engineer our equipment for long-term, dependable performance. This universal pneumatic nailing table is supported by a robust warranty and accessible customer service, ensuring your investment is protected and your production line remains operational.
Ready to revolutionize your pallet manufacturing efficiency and empower your workforce?
Contact us today to request a personalized demonstration and a detailed quote. Let us show you how our solution can directly address your production challenges.
