| Place of Origin: | Shandong Province, China |
|---|---|
| ブランド名: | SH |
| 証明: | ISO9001 |
| Model Number: | MJH1200E,MJH1500E |
| Minimum Order Quantity: | 1 SET |
| 価格: | US $41,000 - 51,000 / Set |
| Packaging Details: | container loading |
| Delivery Time: | about 20 days |
| Payment Terms: | T/T or L/C at sight, Western Union |
| Supply Ability: | 500sets/year |

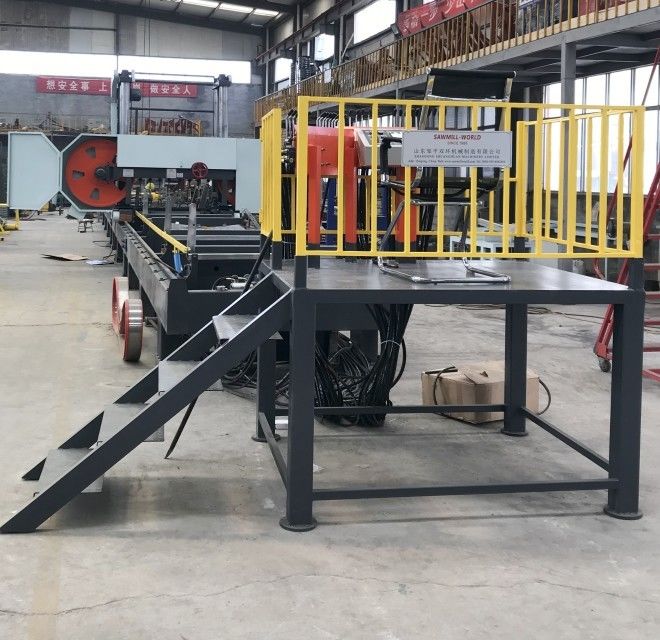

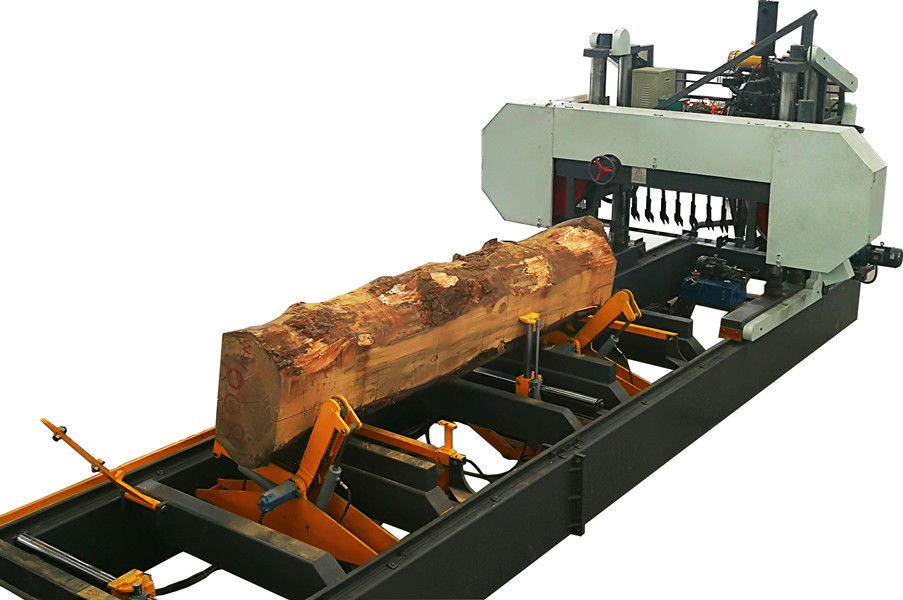

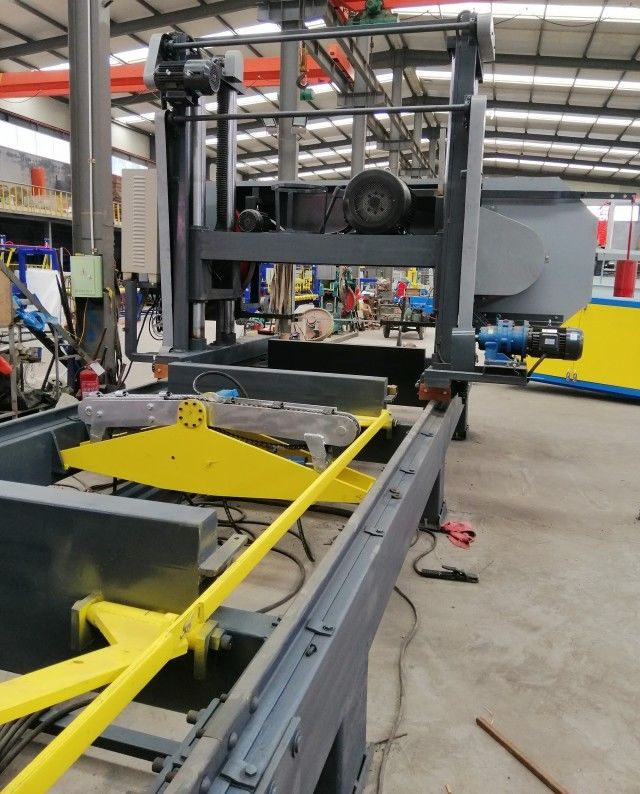

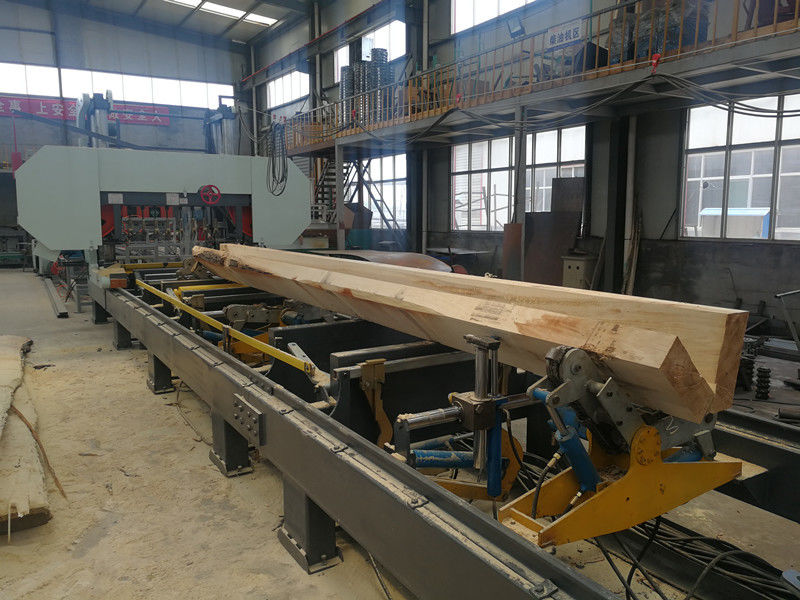

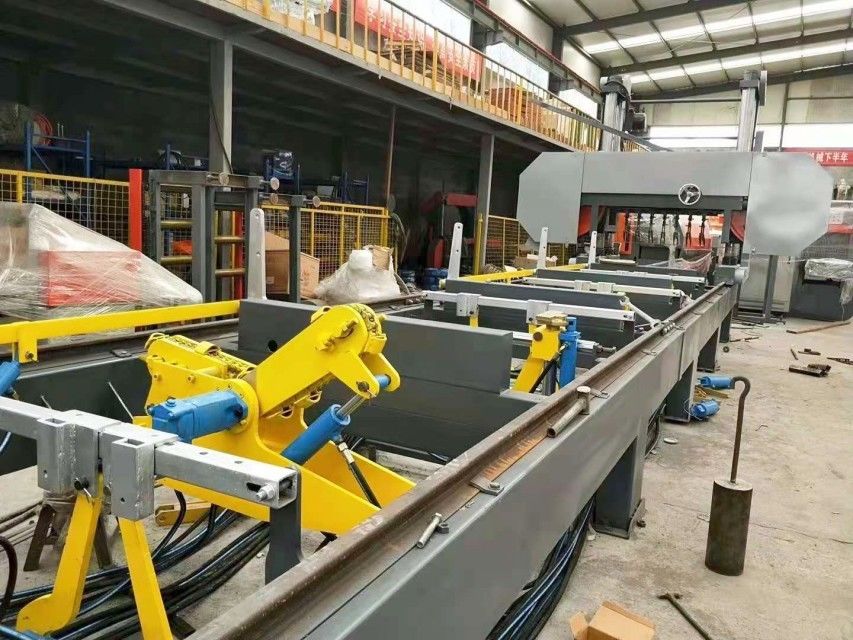

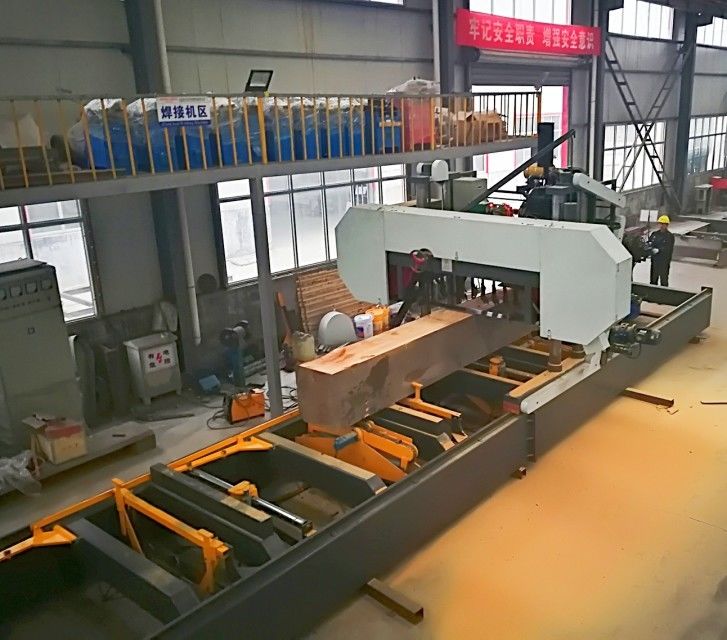

| Name: | Heavy duty hydraulic automatic band sawmill | Max. sawing log diameter: | 1200mm, 1500mm |
|---|---|---|---|
| Saw wheel diameter: | 1070mm | Saw head up/down: | Electrical |
| Band saw blade tension: | Electrical | Saw head moving: | Inverter automatic |
| Band saw blade width: | 125mm, 150mm | Operation: | Touching screen auto setworks |
| Log rotation: | hydraulic chain rotation | Sawn sizes setting: | PLC Touching screen auto setworks |
| Log clamp: | Hydraulic | After-sales service: | Video technical support, spare parts |
| ハイライト: | 油圧バンド鋸の木製の製材所,油圧製材フライス盤,1200mmの製材フライス盤 |
||
技術的なデータ:
|
モデル
|
MJH1200E
|
MJH1500E
|
|
最高の鋸で挽く木製の直径
|
1200mm
|
1500mm
|
|
鋸の車輪径
|
1000mm
|
1070mm
|
|
最高の鋸で挽く木製の厚さ
|
400mm
|
400mm
|
|
標準的な鋸で挽く木製の長さ
|
4500mm
|
4500mm
|
|
電動機力
|
37kw
|
45kw
|
|
アップ/ダウン電動機
|
2.2kw
|
2.2kw
|
|
前方/後方の電動機
|
3kw
|
3kw
|
|
バンド鋸歯の幅
|
125-150mm
|
125-150mm
|
|
バンド鋸歯の張力
|
電気
|
|
|
機械長さ
|
7000mm
|
7000mm
|
|
重量
|
7000kg
|
8500kg
|
